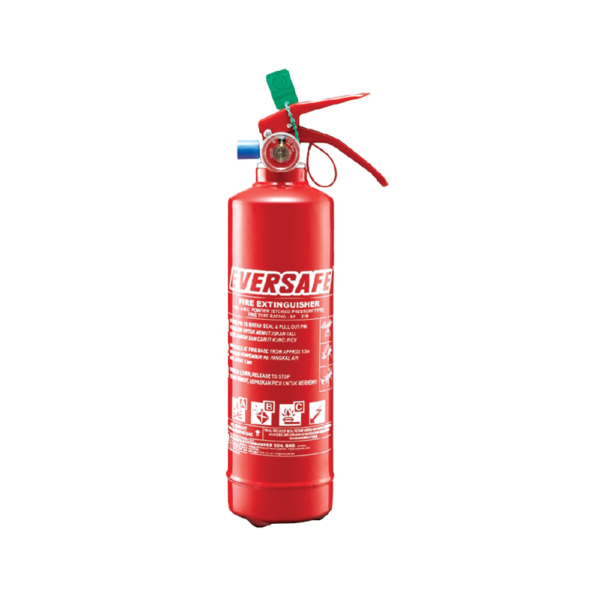

EVERSAFE ABC Dry Powder Extinguishers offer high-quality, cost-effective protection against Class A, B, C, and electrical fires. The non-conductive powder ensures rapid flame knockdown and heat reduction, effectively suffocating the fire and preventing re-ignition.
| Model | EC-1 | EC-2 | EC-3 | EC-4 | EC-6 | EC-9 |
|---|---|---|---|---|---|---|
|
Type |
Stored Pressure Type |
|||||
|
Extinguishant |
ABC Dry Powder |
|||||
|
Capacity |
1 kg |
2 kg |
3 kg |
4 kg |
6 kg |
9 kg |
|
Propellant |
Nitrogen (N2) |
|||||
|
Valve |
Controllable Non Ferrous Valve with Pressure Indicator |
|||||
|
Body Diameter |
79 mm |
110 mm |
130 mm |
130 mm |
158 mm |
178 mm |
|
Overall Height |
325 mm |
370 mm |
425 mm |
525 mm |
525 mm |
587 mm |
|
Approx. Full Weight |
1.7 kg |
3.3 kg |
4.9 kg |
6.3 kg |
9.3 kg |
12.7 kg |
|
Working Temperature Range |
– 20 °C to + 60 °C |
|||||
|
Working Pressure |
12 bar |
|||||
|
Test Pressure |
25 bar |
|||||
|
Burst Pressure |
Exceeds 69 bar |
|||||
|
Approx Discharge Range |
2 m-3 m |
2 m-4 m |
5 m-6 m |
5 m |
6 m-7 m |
6 m – 7.5 m |
|
Approx Discharge Time |
9 sec |
12 sec |
14 sec |
17 sec |
17 sec |
20 sec |
|
Fire Rating (Min) |
5A / 21 B |
8A / 34B |
13A / 55 B |
13A / 70 B |
27A / 144 B |
27A / 144 B |
|
Fire Class |
A, B, C – Electrical |
|||||
|
Internal Coating |
Stoving Epoxy Primer |
|||||
|
Paint Finishing |
RAL 3000 Flame Red Epoxy Polyester Powder Coating |
|||||
|
Mounting |
Plastic Bracket |
Metal ‘L’ Wall Bracket |
||||
|
Manufactured & Certified |
MS 1539 : Part 1 : 2002 |
|||||
