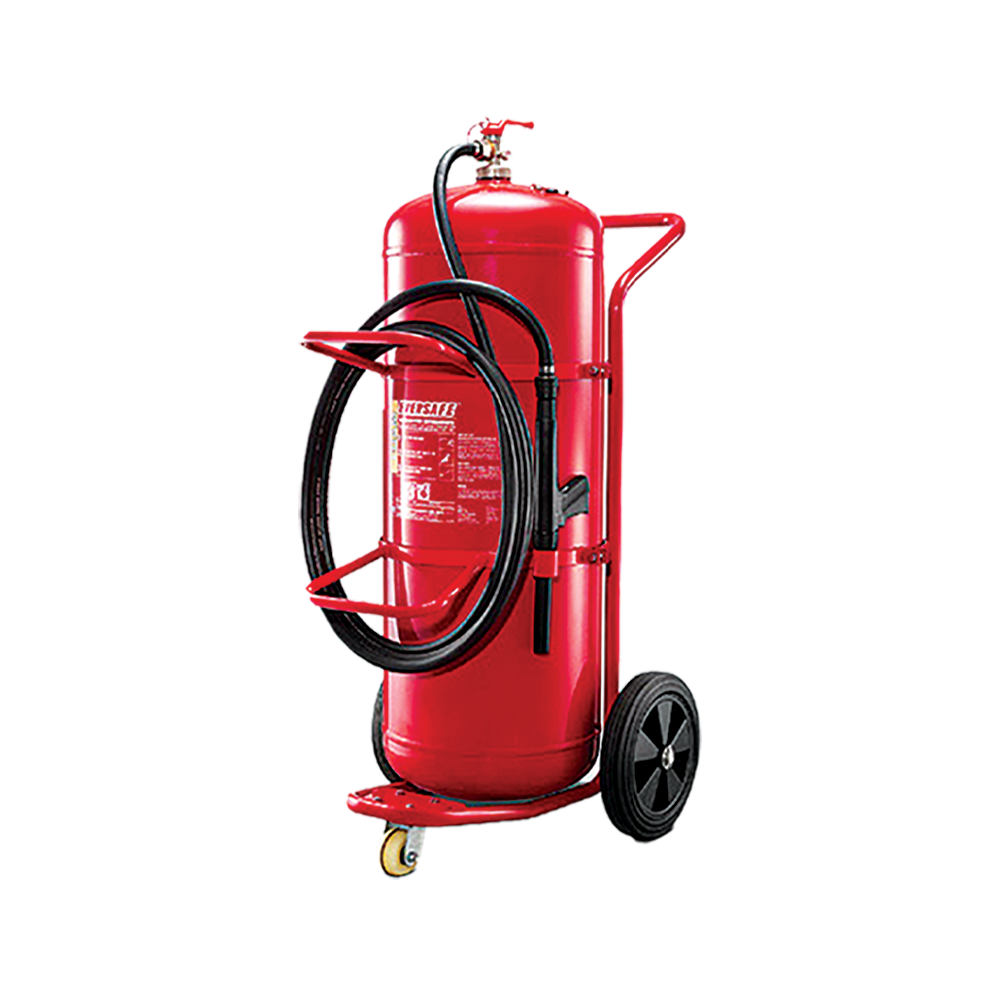

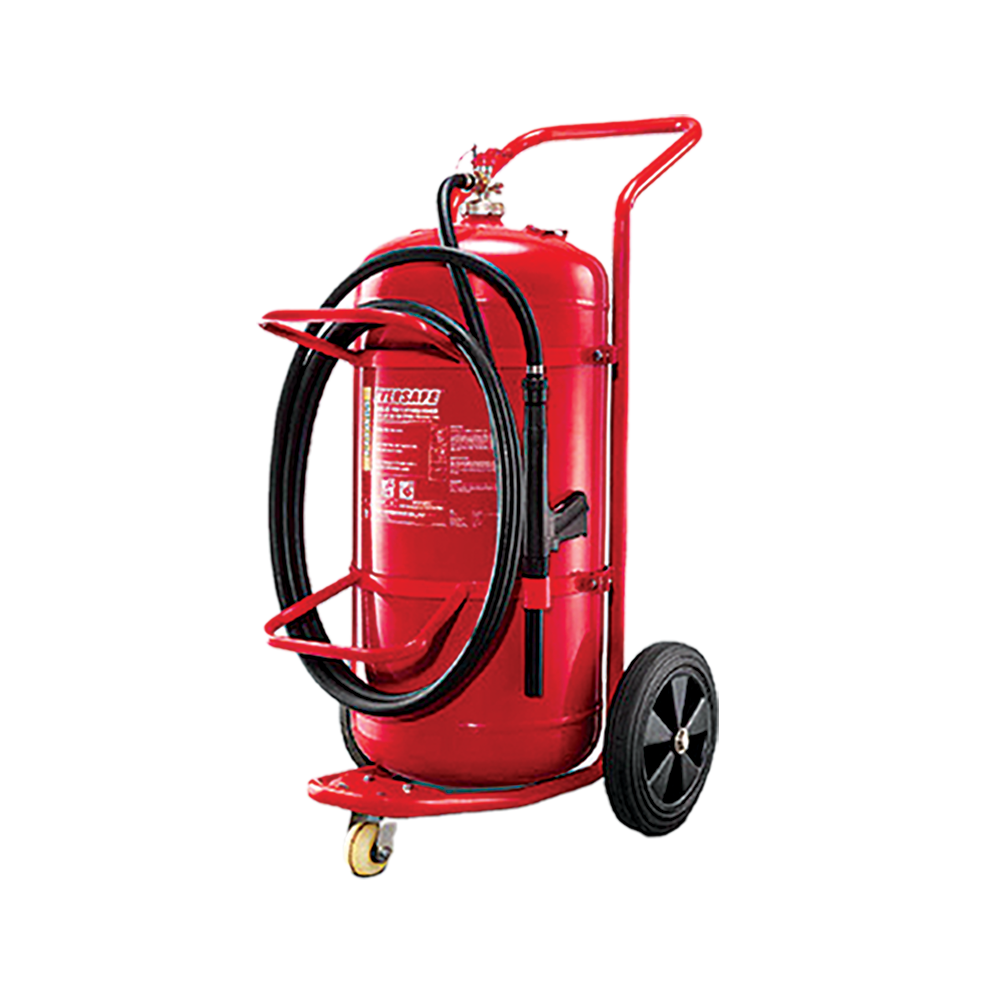

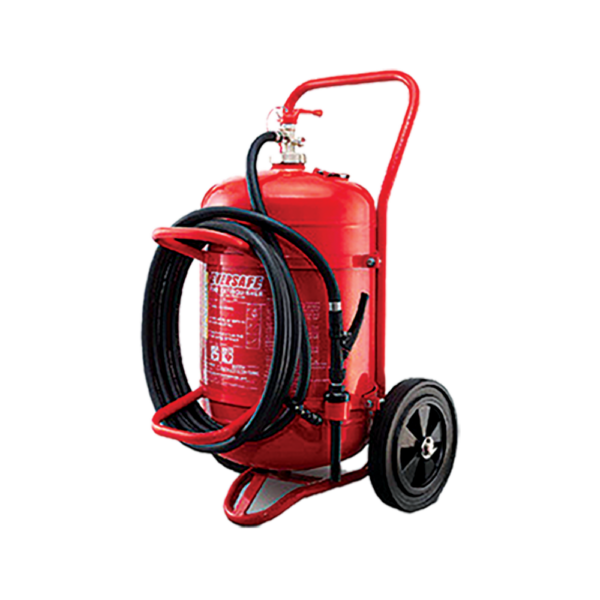

Eversafe AFF FOAM Mobile Fire Extinguisher (Stored Pressure Type - DE Series)

Eversafe AFF FOAM Mobile Fire Extinguisher (Stored Pressure Type – DE Series)

Product Information

EVERSAFE Mobile AFFF Foam Fire Extinguishers are effective against Class B hydrocarbon fuel fires such as oil, petroleum, and aviation fuel. They are ideal for applications where rapid fire knockdown is essential. The AFFF foam agent is also effective on Class A fires and compatible with all dry powder agents. Recommended for use in refineries, airports, vessels, chemical plants, offshore platforms, garages, warehouses, farms, and heavy manufacturing areas.

Designed for high-risk areas with potential large-scale fires
Suitable for airports, vessels, chemical plants, offshore platforms, refineries, warehouses, and heavy manufacturing areas
Large extinguishing agent capacity for maximum fire protection
Highly maneuverable and operable by a single person
Tested and certified to BS EN1866, PED, and MED standards

Variation

Model	MPM 45	MPM 100	MPM 150
Type	Stored Pressure Type
Extinguishant	AFF Foam (Premix)
Capacity	45 litres	100 litres	150 litres
Propellant	Nitrogen (N ₂)
Valve / Headcap	Brass Valve with Pressure Gauge
Discharge Hose	16 mm x 6 m	19 mm x 6 m	19 mm x 6 m
Wheel Diameter	300 mm	350 mm	350 mm
Frame Work	Steel Pipe / Flat Bar
Cylinder Material	Steel
Body Diameter	386 mm	454 mm	454 mm
Overall Height	980 mm	1255 mm	1450 mm
Overall Width	565 mm	685 mm	685 mm
Overall Depth	670 mm	930 mm	930 mm
Approx Empty Weight	46 kg	85 kg	113 kg
Approx Full Weight	91 kg	185 kg	263 kg
Working Temperature Range	+ 5 °C to + 60 °C
Working Pressure	12 bar
Test Pressure	21.5 bar	22.5 bar	22.5 bar
Safety Valve Lift Pressure	17 – 21 bar
Approx Discharge Time	109 sec	206 sec	300 sec
Approx Discharge Range	10 – 12 m	11 – 13 m	11 – 13 m
Fire Rating	A IIB	A IVB	A IVB
Fire Class	A, B
Internal Coating	High Build Epoxy Tank Coating
Paint Finishing	RAL 3000 Flame Red Epoxy Polyester Powder Coating
Designed & Manufactured	EN 1866
