Eversafe ABC Dry Mobile Fire Extinguisher (Stored Pressure Type - DE Series)

Eversafe ABC Dry Mobile Fire Extinguisher (Stored Pressure Type – DE Series)

Product Information

EVERSAFE Mobile Dry Powder Fire Extinguishers are effective against Class A (carbonaceous materials), Class B (flammable liquids), and Class C (flammable gases) fires. They are also suitable for use on live electrical fires. These extinguishers are recommended for use in refineries, airports, vessels, chemical plants, offshore platforms, garages, warehouses, farms, and heavy manufacturing areas.

Designed for high-risk areas with potential large-scale fire hazards
Suitable for airports, vessels, chemical plants, warehouses, refineries, and electrical plants
Large extinguishing agent capacity for maximum fire suppression
Highly maneuverable and easy for single-person operation
Tested and certified to BS EN1866, PED, and MED standards

Variation

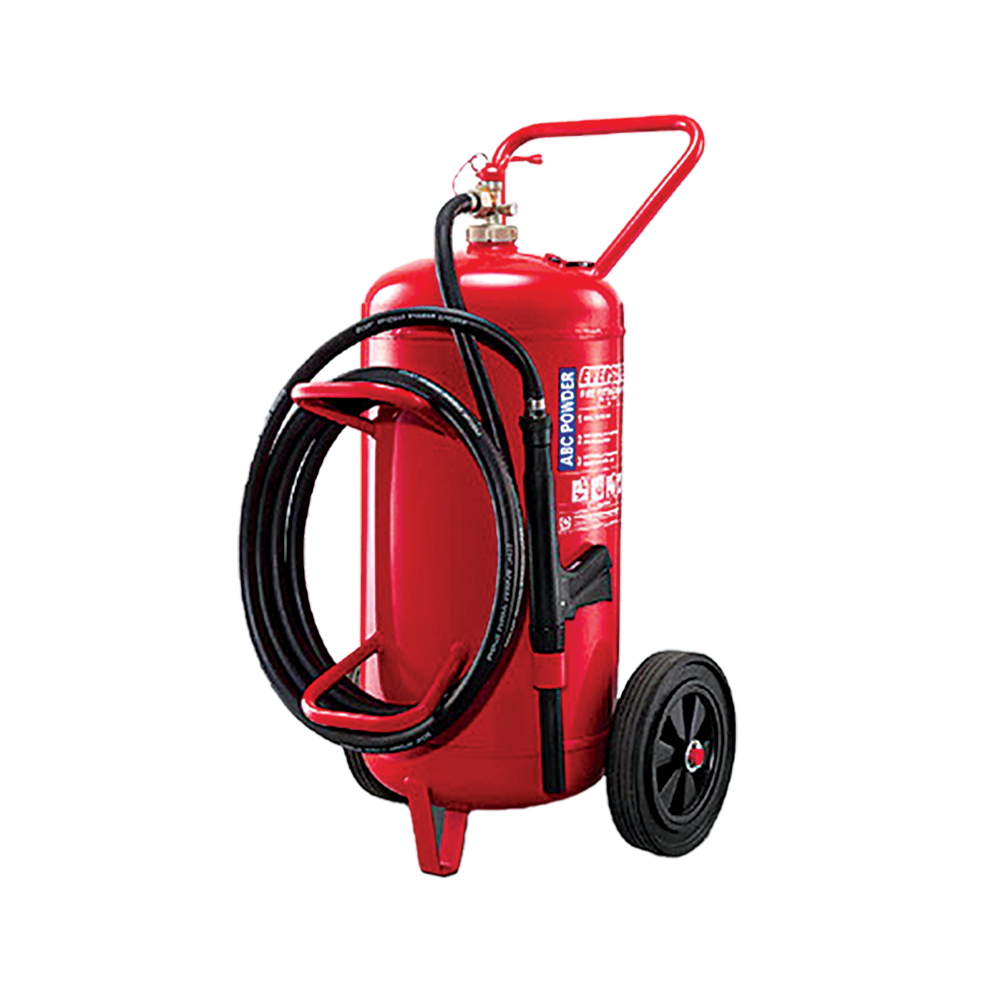

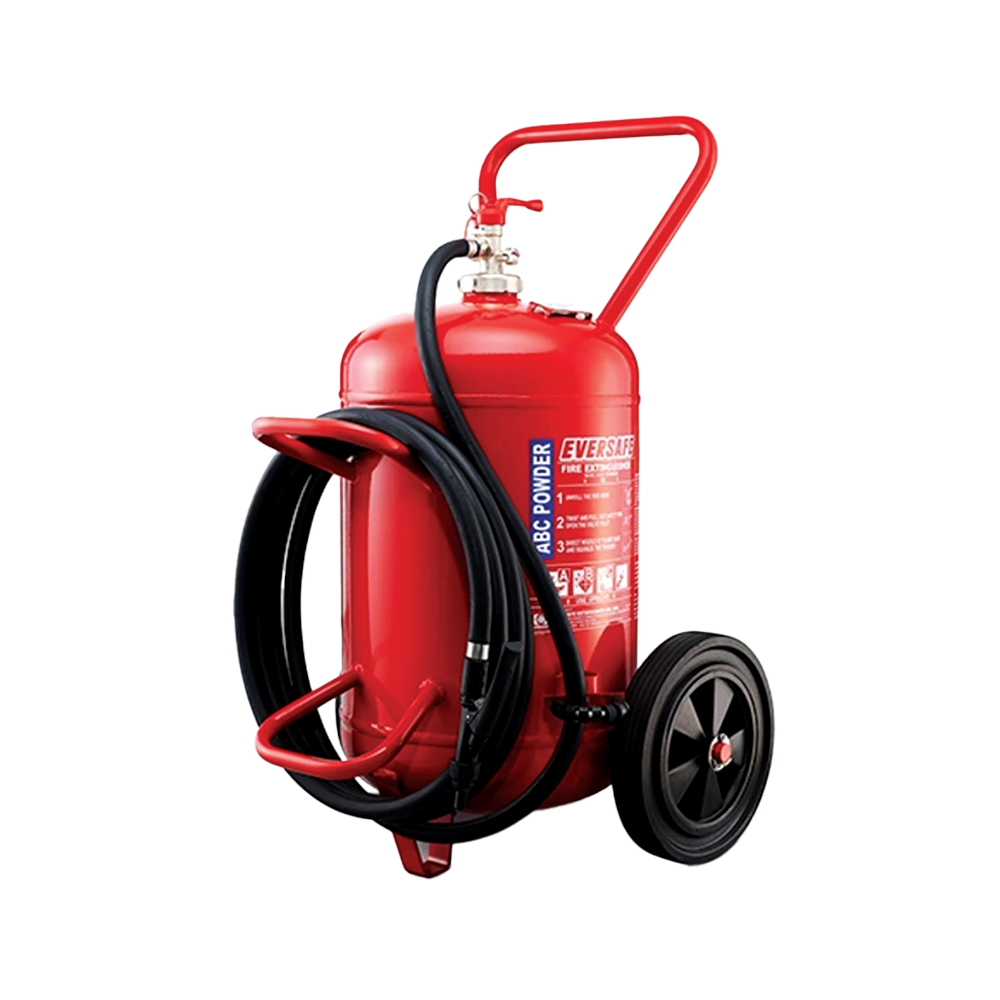

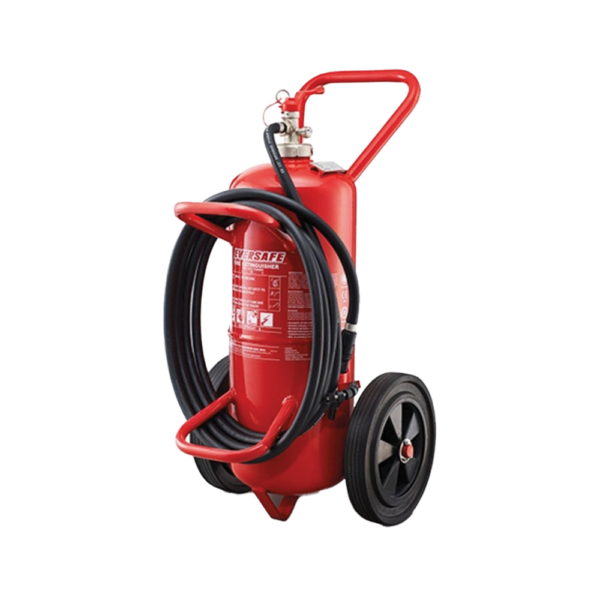

Model	MPM 25	MPM 50	MPM 75
Type	Stored Pressure Type
Extinguishant	ABC Dry Powder
Capacity	25 kg	50 kg	75 kg
Propellant	Nitrogen (N ₂)
Valve / Headcap	Brass Valve with Pressure Gauge
Discharge Hose	13 mm x 6 m	16 mm x 6 m	19 mm x 6 m
Wheel Diameter	300 mm
Frame Work	Steel Pipe / Flat Bar
Cylinder Material	Steel
Body Diameter	250 mm	368 mm	368 mm
Overall Height	896 mm	975 mm	1090 mm
Overall Width	460 mm	570 mm	570 mm
Overall Depth	550 mm	730 mm	720 mm
Approx Empty Weight	22 kg	39 kg	59 kg
Approx Full Weight	47 kg	89 kg	134 kg
Working Temperature Range	– 20 °C to + 60 °C
Working Pressure	12 bar
Test Pressure	21.5 bar
Safety Valve Lift Pressure	17 – 21 bar
Approx Discharge Time	48 sec	61 sec	70 sec
Approx Discharge Range	9 m	10 m	12 m
Fire Rating	A IB C	A IIB C	A IIIB C
Fire Class	A, B, C + Electrical
Paint Finishing	RAL 3000 Flame Red Epoxy Polyester Powder Coating
Designed & Manufactured	EN 1866
