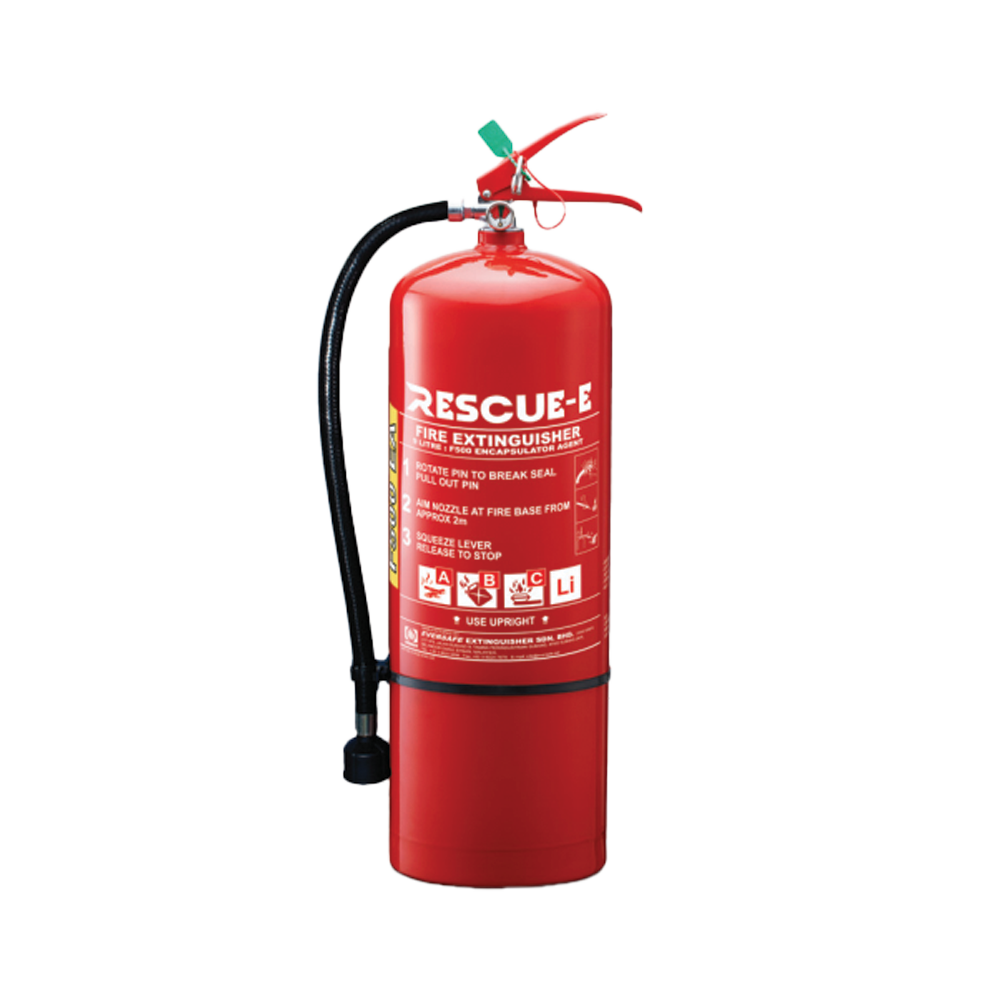

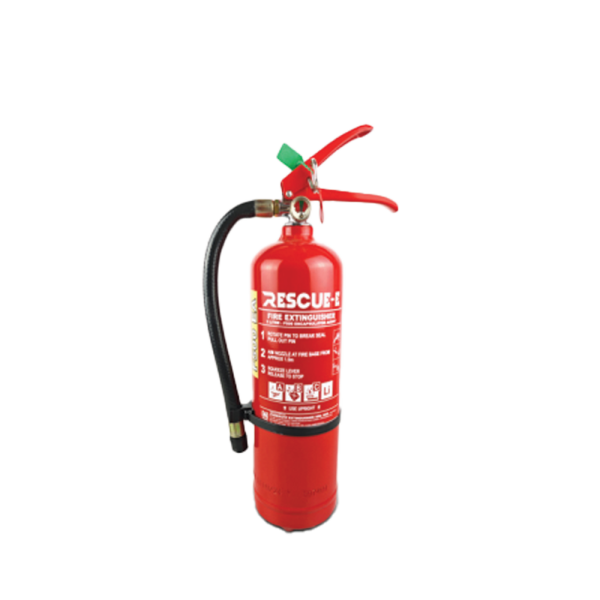

| Model | EEV 2 | EEV 9 | ||||
|---|---|---|---|---|---|---|
|
Type |
Stored Pressure Type |
|||||
|
Extinguishant |
F500 EA (Encapsulator Agent Premix) |
|||||
|
Capacity |
2 litres |
9 litres |
||||
|
Propellant |
Nitrogen (N ₂) |
|||||
|
Valve |
Controllable Chrome Plated Brass
Valve with Pressure Indicator |
|||||
|
Body Diameter |
178 mm |
|||||
|
Overall Height |
625 mm |
|||||
|
Approx Full Weight |
13.7 kg |
|||||
|
Working Temperature Range |
+ 5°C to + 60°C |
|||||
|
Working Pressure |
12 bar |
|||||
|
Test Pressure |
25 bar |
|||||
|
Burst Pressure |
Exceeds 69 bar |
|||||
|
Approx Discharge Range |
6 m |
|||||
|
Approx Discharge Time |
68 sec |
|||||
|
Fire Rating (Min) |
13 A / 183 B |
|||||
|
Fire Class |
A, B + Electrical Safety Test |
|||||
|
Internal Lining |
Thermoplastic Powder Coating (PPA) |
|||||
|
Paint Finishing |
RAL 3000 Flame Red Epoxy
Polyester Powder Coating |
|||||
|
Mounting |
Metal ‘L’ Wall Bracket |
|||||
|
Manufactured & Certified |
MS 1539 : Part 1 : 2002 |
|||||
