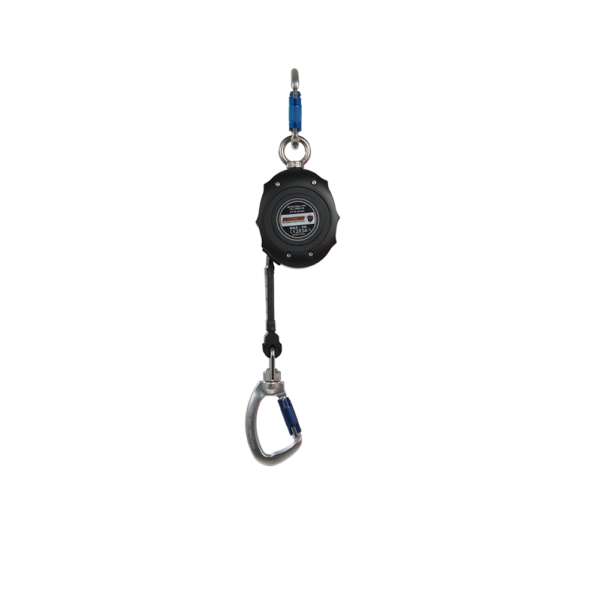

An automatic fall arrest system designed to provide maximum freedom of movement while working at heights. The braking mechanism engages instantly during a fall, stopping the descent within centimeters to minimize injury risk and impact force.
| Model | PFP-SRL-MB-WB3 | PFP-SRL-SB-GS6 | PFP-SRL-SB-GS10 | PFP-SRL-SB-GS15 | PFP-SRL-SB-GS20 |
|---|---|---|---|---|---|
|
Description |
3M Webbing Fall Arrester |
6M Galvanised Steel Fall Arrester |
10M Galvanised Steel Fall Arrester |
15M Galvanised Steel Fall Arrester |
20M Galvanised Steel Fall Arrester |
|
Product max. extension length (m) |
3.0 ± 0.1 |
6.0 ± 0.1 |
10.0 ± 0.15 |
15.0 ± 0.15 |
20.0 ± 0.15 |
|
Webbing / wire rope max. extension length (m) |
2.84 ± 0.02 |
5.85 ± 0.1 |
9.75 ± 0.05 |
14.75 ± 0.05 |
19.75 ± 0.05 |
|
Static strength (kN) |
≥15 |
≥12 |
|||
|
Dynamic impact force (kN) |
<6 |
||||
|
Arrest distance (m) |
<2 |
||||
|
Service rated load (Including tools) |
100 kg |
||||
|
Housing shell material |
High-Stengthed ABS |
Reinforced nylon |
Aluminium |
||
|
Energy dissipating method |
Internal shock absorber system |
||||
|
Service ambient temperature |
-30 °C to 50 °C |
||||
|
Retractable Lifeline (Material) |
Webbing (Dyneema) |
Wire rope (Galvanized) |
|||
|
Main key components (Shall locking pawls spring) |
Carbonic acid / Alky steel |
||||
|
Fasteners |
Stainless steel |
||||
|
Connecting Hook |
Aluminium swivel hook |
||||
